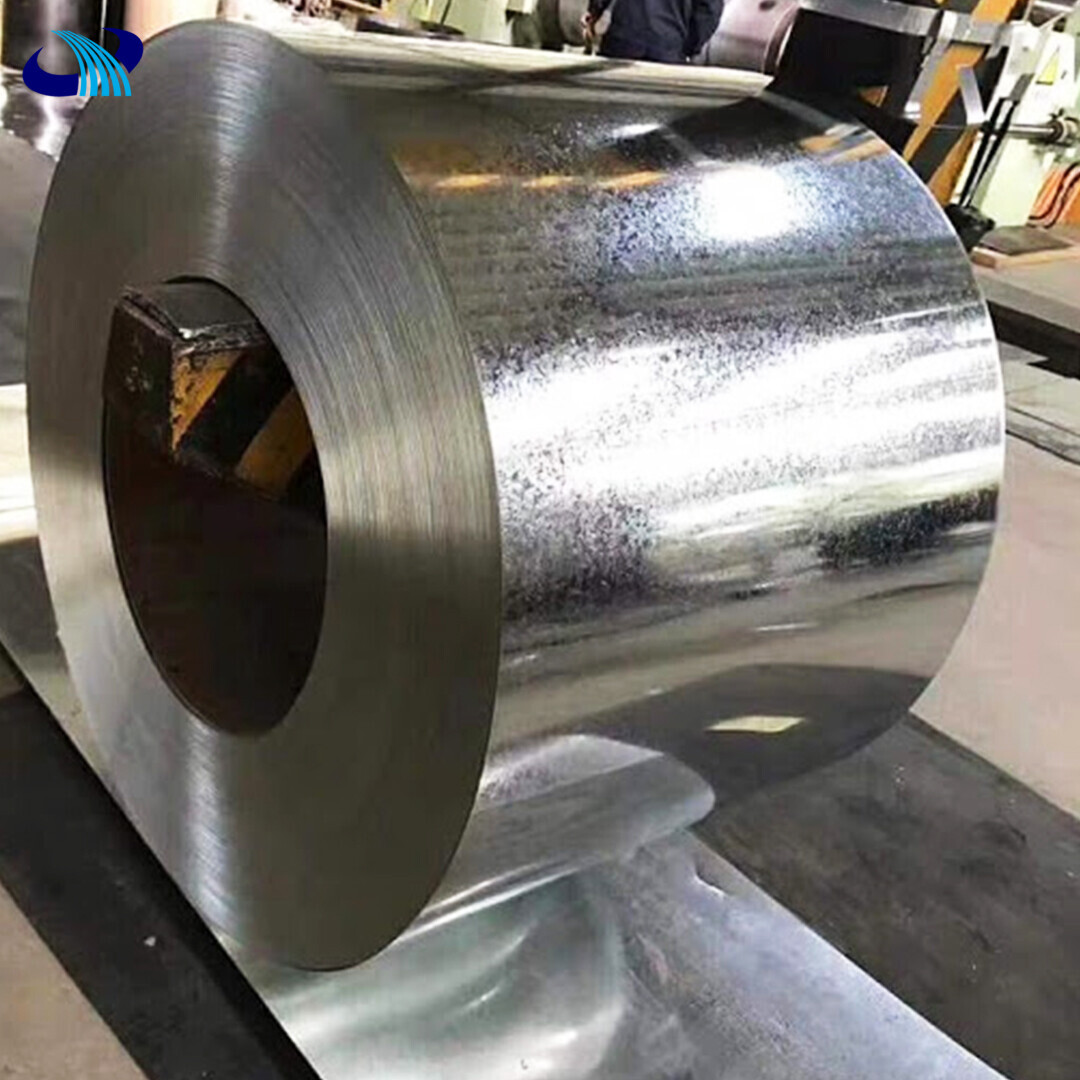

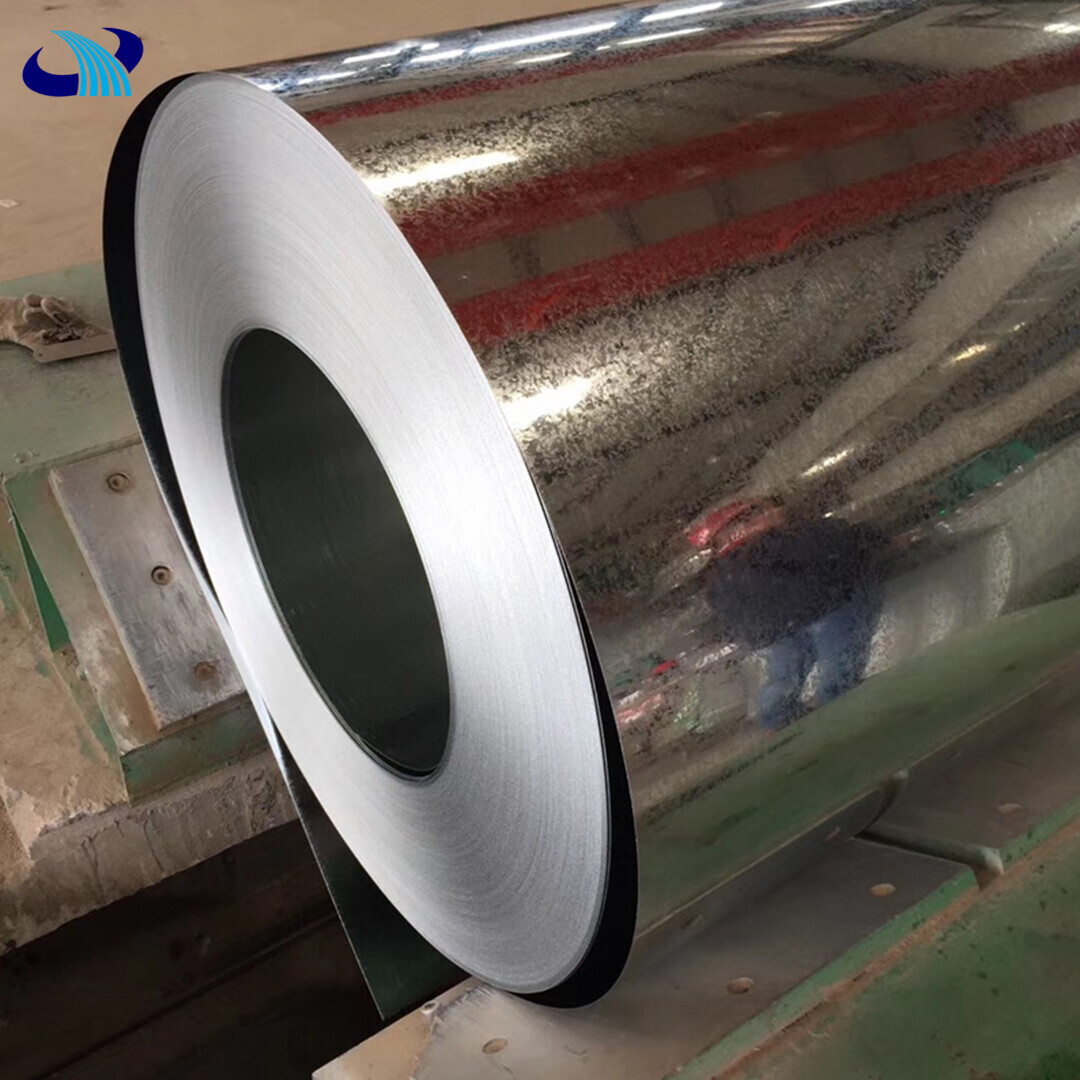

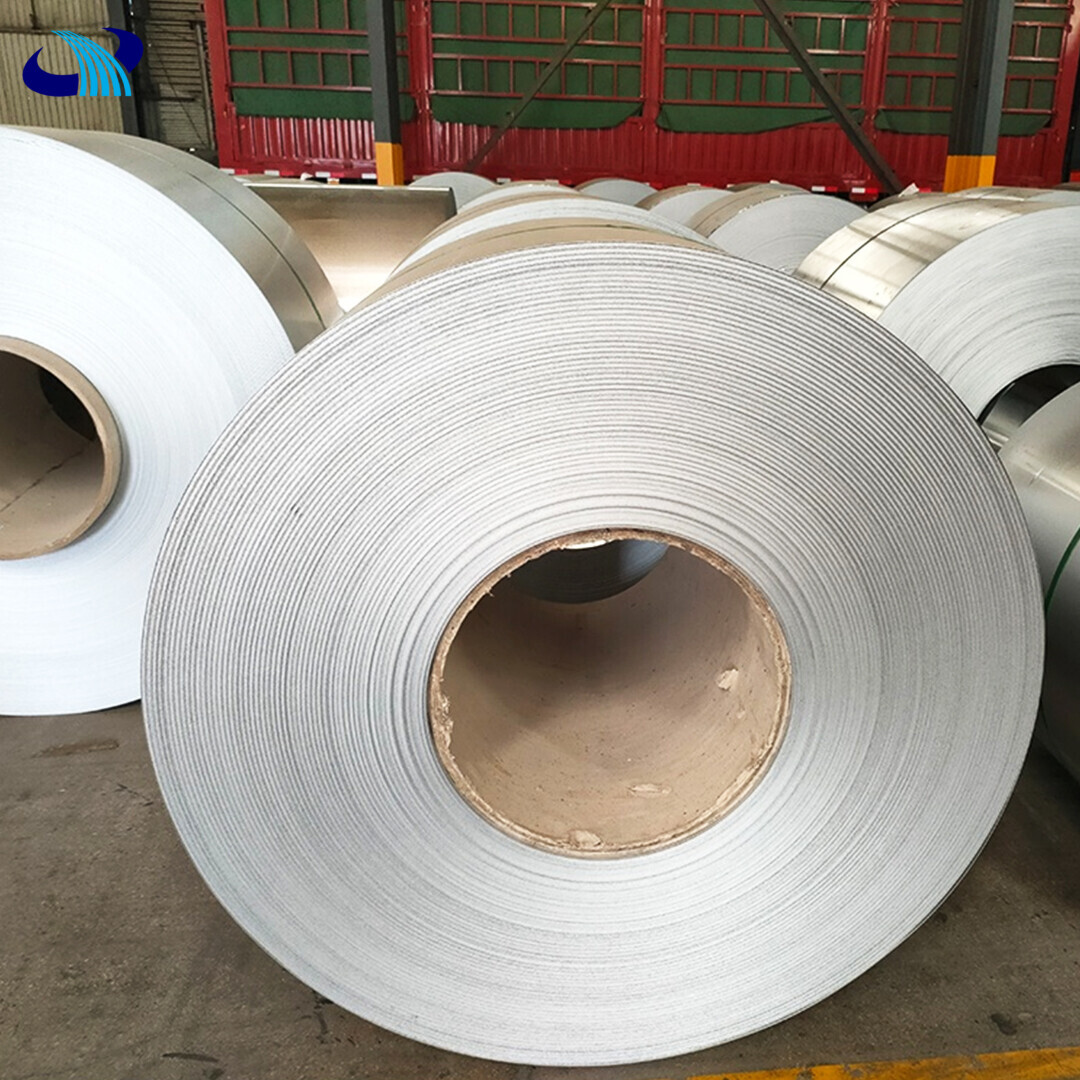

Galvanized Coil
Galvanized coil, a thin steel sheet that is dipped in a bath of molten zinc so that a layer of zinc is adhered to its surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously dipped in the galvanizing tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate.
WhatsApp:+86 15169059652
Tel:+86 15169059652
Email:jujy@zhongwangsteel.com
Contact us

Product Details

Technical StandardEN10147,   EN10142, DIN 17162, JIS G3302, ASTM A653
Steel GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD,   S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440,   SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22   (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQCR80(550), CQ, FS, DDS,   EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80   (550); or Customer’s Requirement
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm, according to customer's requirement
Type of CoatingHot Dipped Galvanized Steel(HDGI)
Zinc Coating30-275g/m2
Surface TreatmentPassivation(C), Oiling(O), Lacquer sealing(L),   Phosphating(P), Untreated(U)
Surface StructureNormal spangle coating(NS), minimized spangle   coating(MS), spangle-free(FS)
QualityApproved by SGS,ISO
ID508mm/610mm
Coil Weight3-20 metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or   coated steel sheet is outer packing ,
 side guard plate,then wrapped by seven steel belt.or   according to customer's requirement
Export marketEurope, Africa, Central Asia, Southeast Asia, Middle   East, South America, North America, etc


Thickness/mmWeight(kg/㎡)Thickness/mmWeight(kg/㎡)
0.53.932.519.36
0.75.5323.55
17.853.527.48
1.310.213.930.62
1.612.564.535.33
215.75.543.18


Product Show


Application

应用 (3).jpg

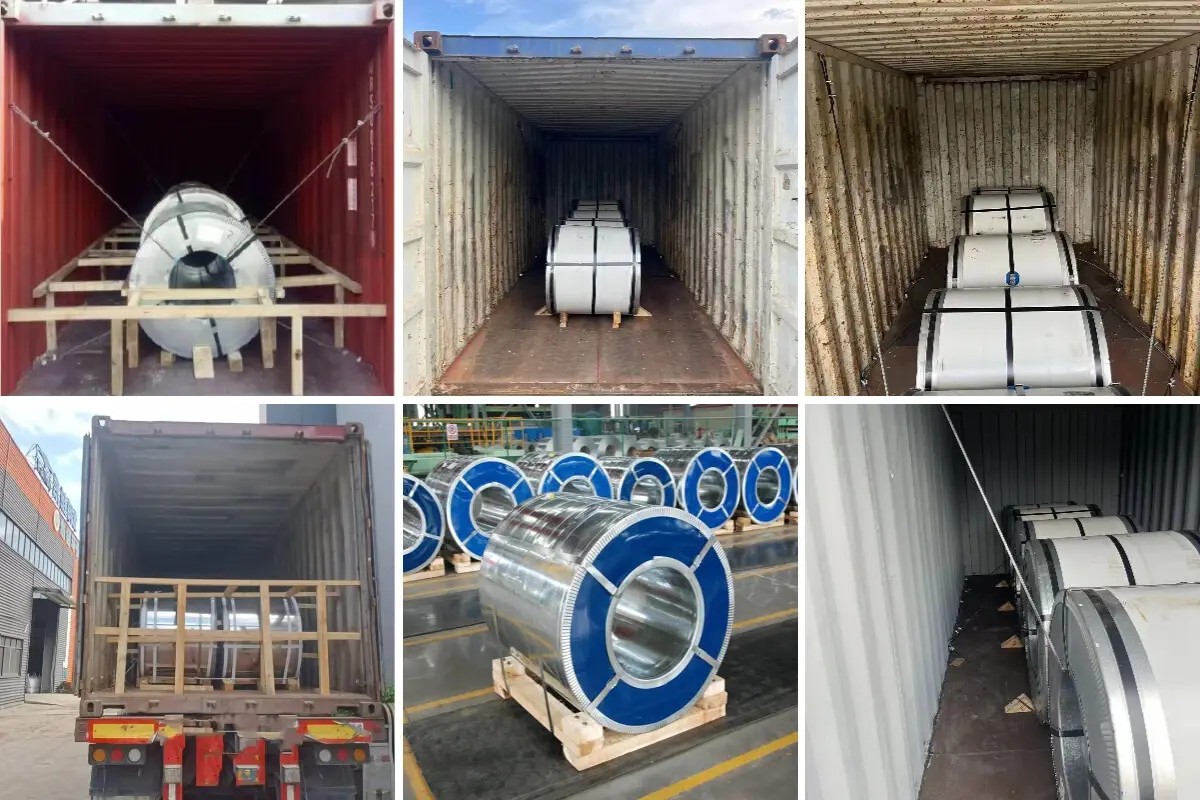

Product Package


FAQ

Q: Are You Manufacture or Trade Company?

A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?

A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?

A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
